Galvanized steel sheet

Payment Type:

L/C,T/T/DP/OA

Incoterm:

FOB,CFR,CIF

Min. Order:

27 Metric Ton

Delivery Time:

25 Days

Category:

Description

Specifications of gi metal sheet
1) Capacity: about 1,5000 tons per month for the steel sheet and coil product
2) Grade: SGCC, DX51D, Q195, all according to the customer’s request
3) Standard: JIS G3302 1998, ASTM A653M/A924M 2004, all according to the customer’s request
4) Thickness: 0.15mm – 3.5mm, all available.
5) Width: 600mm – 1500mm , all available.
6) Length: we can adjust the length according to your request
7) Elongation: Min. 7%
8) Zinc coating weight: Min. 60gm/mm2, double side
9) Tensile strength: 28.1 – 49.2kgf/mm2
10) Spangle: regular spangle, minimized spangle and zero spangle.
11) Surface treatment: chemical passivating treatment, oils, passivating oils.
12) Edge: mill edge, cut edge
13) Min trial order 10 ton each thickness, 1×20′ per delivery

Thickness

Width

Length

Zin Coating Weight

0.15mm-3.5mm

600mm-1500mm

As your request

60g/m2-600g/m2

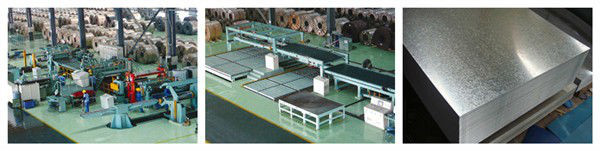

Production Facility of gi metal sheet

Process of gi metal sheet

Pay off reel → double cut shear → welder-notcher → entry accumulator → pre cleaning section → furnace → hot bridle → zinc pot → air knife → after cooler → water quench → dryer → skin pass mill → dryer → tension leveler → dryer → chemical coater → chemical oven → cooler → exit accumulator → oiler → exit shear → tension reel.

Surface Treatment of gi metal sheet

Surface Treatment

Features

Chemical passivating treatment

minimize the chance of white rust froming during transit and strorage

maintain the bright, shiny appearance for a longer time

Oils

minimize the tendency for storage and transit stain

Passivating oils

provide the protection from storage and transit stain by special chemcials called corrosion inhibitors

Surface Finish of gi metal sheet

Surface finish

Pattern

Application

Regular spangle

Standard spangles with flower pattern

General uses

Minimized spanlge

Minimized spangles than regular

General painting applications

Zero spangle

Extremely minimized spangles

Special painting applications



Applications of gi metal sheet
1. Construction and building: roofings, ventilating duct; handrail; partition panel,etc.
2.Further processing: coating base plate.
3. Electric appliances: refrigerator; washing machine; recorder; microwave, etc.

Features of gi metal sheet
1) gi metal sheet is manufactured to have a long durability, strong corrosion resistance and shiny surface.
2) gi metal sheet features excellent forming properties, paintability, weldability, and is suitable for fabrication by forming, pressing and bending
