1. Introduction (Corrugated Steel Sheet/ prime Hot Dipped Galvanized Corrugated Steel Sheet)
HDG & PPGI
A Base Sheet: Galvanized Steel Sheet/ GI sheet
Corrugated sheets are made from Galvanized steel coils, Galvalume Steel coils, Galvalume Pre-painted
sheet and aluminum sheet, pre painted hot dip galvanized steel coils.
Corrugated steel roofing sheets are featured with easy installation, high strength and low in lost.
They are widely use as the wall or roof of prefab house, factory, warehouse, garage, exhibition center,
cinema etc.
B Coating:
Organic fluorine resin which has good appearance of anticorrosion. Its coating has good adhesion,
high tenacity.PE PVDF Surface finish coats can be calssified into groups as follows: polyester(PE),
silicone modified polyester(SMP), High durability polyester(HDP), polyvinylidene fluoride(PVDF).
Then the ppgi coil will be roll formed by roll forming machines. Its thickness and color can be different.
2. Specification for Color corrugated steel sheet
Goods name |
Corrugated Steel Sheet/ Prepainted Galvanized (PPGI) Corrugated Steel Sheet |
standard |
JIS G3312, ASTM A 653 |
Material |
Cold Rolled Steel |
surface treatment |
chromated /oiled/skinpassed/dry/ anti-fingerprint |
Color |
Any RAL color As customers’ request |
Brand |
CSTARS |
Quality |
Prime quality |
Certificate |
ISO9001:2008 |

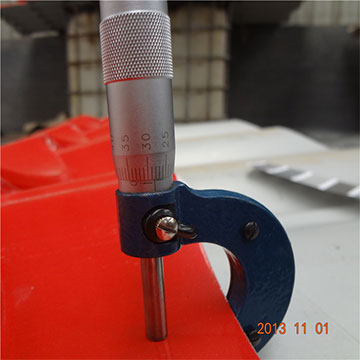

Thickness |
0.12-0.50mm |
Width Choose |
665mm, 700mm, 750mm, 800mm, 840mm, 850mm, 900mm, 1000mm etc |
Length |
2440mm, 3660mm or As costomer’s requirements |
Grade |
SGCC/DX51D/SGCH |
Zinc |
60-120g/m2 |
Base sheet |
Hot dipped galvanized steel coil in colors / PPGI Coil / PPGL Coil |
spangle |
zero/minimized//big /regular spangle |
usage |
roof, walls, ceiling and fence |
application |
Gymnasium, factories, workshops, warehouse, residential, carport, farmer’s market and the highway coaming |
MOQ |
25 metric tons |
payment terms |
30% TT in payment, balance 70% TT should be paid after receiving the copy of B/L |
Characteristic |
1. weatherproof |
2. heating insulation |
|
3. fireproof |
|
4. anti-rust |
|
5. sound insulation |
|
6. long life span:more than 25 years |
|
Other Models |
1. GI GL Sheet / Galvanized Corrugated Sheet / GL |
Raw material 762mm to 665mm-680mm (after corrugated) and 9 waves |
|
Raw material 914mm to 800mm-890mm(after corrugated) and 11 waves |
|
Raw material 1000mm to 900mm or 920mm(after corrugated) and 12 or 14 waves |
|
Raw material 1200mm to 1070mm(after corrugated) and 17 waves |
|

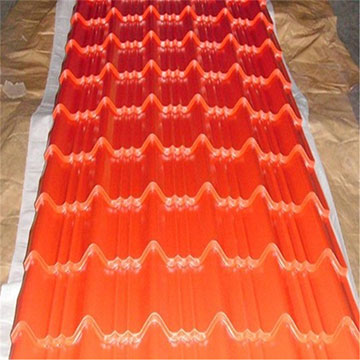

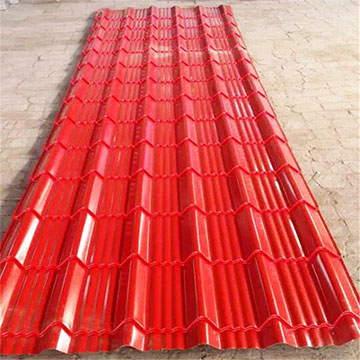

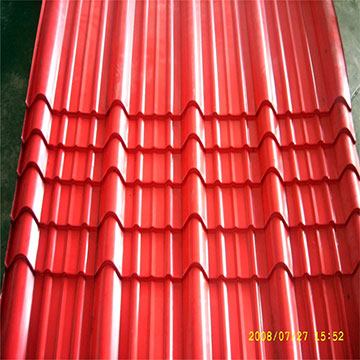

2. PPGI Corrugated Sheet / Prepainted Galvanized Sheet |
|

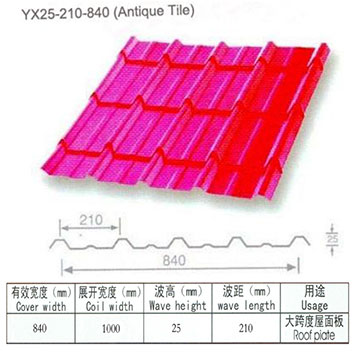

YX25-207-828, YX28-207-828, YX30-207-828, YX25-210-840(Glazed tile), YX25-210-840, YX15-225-900, YX27-190-750/800/950, YX25-210-1050, YX28-280-840, YX40-320-960, YX40-320-980,YX10-130-910, YX35-120-750, YX12-65-850, YX30-20-800, Other design can be customerized as per your demand. |
Chemical Composition
GRADE |
C |
Si |
Mn |
P |
S |
Ti |
SGCC/DX51D+Z |
≤0.10 |
≤0.50 |
≤0.60 |
≤0.10 |
≤0.030 |
≤0.020 |
DX52D+Z |
≤0.10 |
≤0.50 |
≤0.60 |
≤0.10 |
≤0.030 |
≤0.020 |
SGCD/DX53D+Z |
≤0.10 |
≤0.30 |
≤0.50 |
≤0.05 |
≤0.030 |
≤0.020 |
SGCE/DX54D+Z |
≤0.10 |
≤0.30 |
≤0.30 |
≤0.03 |
≤0.020 |
≤0.020 |
DX56D+Z |
≤0.10 |
≤0.30 |
≤0.30 |
≤0.03 |
≤0.020 |
≤0.020 |
Structural |
≤0.20 |
≤0.60 |
≤1.70 |
≤0.10 |
≤0.045 |
|
Mechanical Properties
Grade |
Yield Strength MPa |
Tensile Strength MPa |
Elongation % |
SGCC(DX51D+AZ) |
≥205 |
≥270 |
≥22 |
SGCD(DX52D+AZ) |
≥140 |
≥270 |
≥38 |
S250GD+AZ |
≥250 |
≥330 |
≥19 |
S350GD+AZ |
≥350 |
≥420 |
≥16 |
